Garmin Echomap™ UHD 92sv
- Screen resolution: 400 × 800 pixels
- Screen size: 9" (19.9 × 11.3cm)
- Screen type: WVGA
- Power: 500 (RMS) / 4000W (peak-to-peak)
- Water Resistance: IPX7
- Mounting options: Bracket or recessed
- Weight: 1kg
- Power Consumption: 18W
- Receiver: 5Hz
- Installed worldwide base map
- Suitable for data cards: 1x microSD™ card (up to 32gb)
- Waypoints: 5000
- Track log: 50,000 points / 50 saved tracks
- Routes: 100
- Equipped with timed tables
- Compatible with Garmin Echo sounders
- Support for AIS, DSC, GCV Black Box, Fusion-Link
- Compatible Radios and ActiveCaptain
- Compatible with NMEA 2000
- Transducer pin numbers: 12
- NMEA 0183 ports: input and output port
- Equipped with wireless connectivity
- Compatible with Dual-Frequency and Dual-Beam Echo Lead
- Supported Frequencies: Traditional Chirp with high bandwidth (150-240 kHz) ClearVü/UHD SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz)
- Maximum depth: 700m/2300ft in freshwater and 335m/1100ft in saltwater (depending on conditions)
- Bottom logging, water temperature log and map, sonar recording and rewind
- No Garmin Marine Network ports

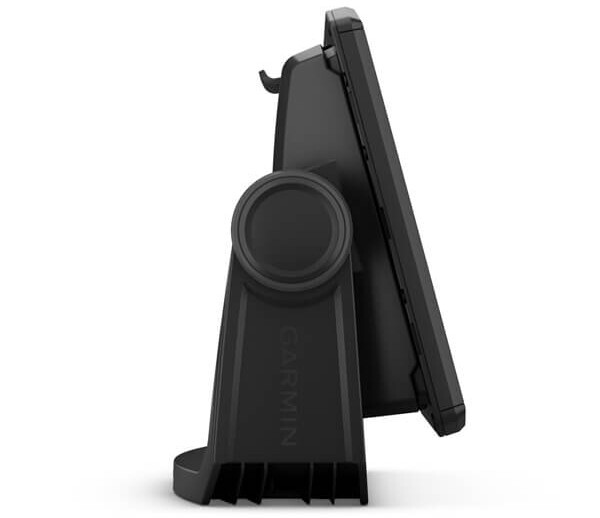

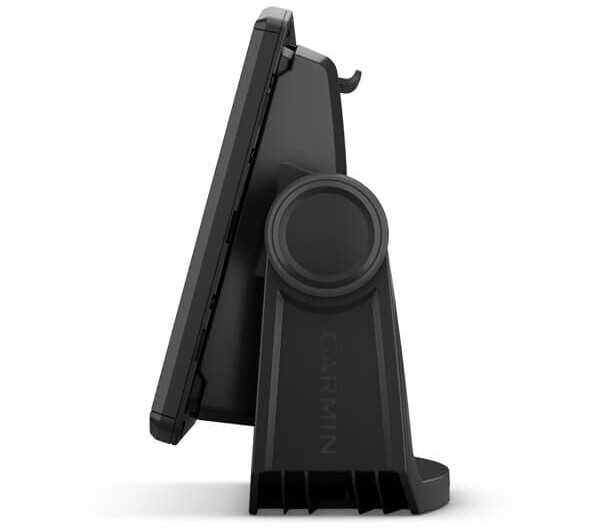

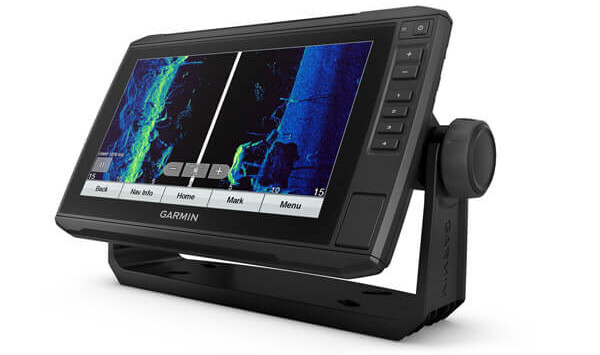

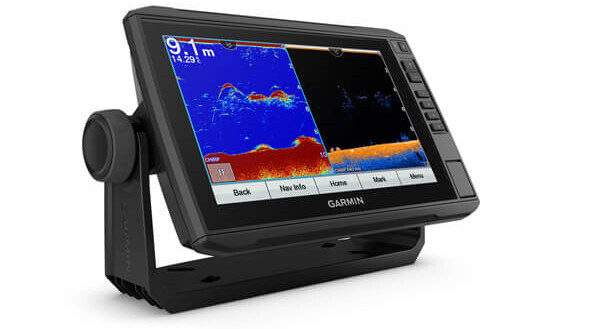

The sunlight-readable 9" touchscreen chartplotter features a bracket mount with quick release. This chartplotter supports several Garmin transducers, including the Panoptix Livescope™ scanning sonar system. Vibrant, high-contrast scanning sonar colour palettes make it easier than ever to distinguish targets and structures. Manage your water (sport) experience from almost anywhere with the ActiveCaptain® app. Connect your boat to share data, sonar and maps with other compatible devices. Create personalized on-screen fishing maps with a 0.3-meter circumference. Save the data for your own use or share it with the Garmin QuickDraw™ community on the Garmin Connect™ app.

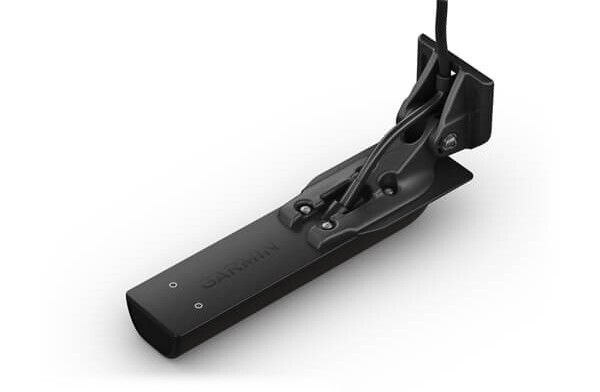

The GT56UHD-TM transducer offers traditional Garmin CHIRP sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and a 20% greater range for our UHD SideVü sonar, top performance is achieved at all depths.
