With this Garmin Echomap 122 LiveScope Combi Pack, you get a complete view of the underwater environment! Perfect for precisely targeting the largest predators!
Garmin Echomap Ultra 2 122sv Touchscreen
- Routes: 100
- Weight: 2.5kg
- Receiver: 10Hz
- Waterproof: IPX7
- Waypoints: 5,000
- Screen type: WXGA
- Track points: 50,000
- Output power: 600W
- NMEA 2000 ports: 1
- Input voltage: 9-18Vdc
- Data cards: 2 microSD
- Screen size: 12.1" diagonal
- Maximum power at 10Vdc: 36W
- Dimensions: 34.1 × 22.9 × 9.8cm
- Screen resolution: 1280 × 800 pixels
- Wireless: WiFi and ANT+ connectivity
- Mounting: Bracket or flush mount
- Marine Network ports: 2 (large connector)
- Control: Touchscreen with Keyed Assist
- Transducer ports: 1 (12-pin scanning sonar)
- Satellite systems: GPS, Glonass, Galileo, Beidou
- Sonar: CHIRP, ClearVü, SideVü, Panoptix and LiveScope
- Chartplotter: AIS, DSC, Fusion-Link and Sailing features
- Navigation: Supports BlueChart, Navionics and Quickdraw Contours
GT56UHD-TM Transducer
- Number of pins: 12
- Cable length: 7.62m
- Power: 350W-500W
- ClearVü range: 122m
- SideVü range: 152m
- Measurements: Depth and temperature
- Dimensions: 218.5×51.8×27.7mm
- Traditional range: 244m (freshwater)
- Deadrise angles: Supports 0° to 70°
- Beamwidth: CHIRP 24-16; ClearVü/SideVü 0.52×52
- Frequencies: CHIRP 150-240kHz; ClearVü/SideVü 455/800/1000kHz
Garmin LiveScope PLUS System LVS32
- Fuse: 7.5A
- Sonar type: Live
- Transmit power: 500W
- Number of pins: 21
- Cable length: 20ft
- Weight LVS32: 0.9kg
- Weight GLS 10: 2.0kg
- Waterproof rating: IPX7
- Input voltage: 10-32V
- Network port: 1 (small)
- Maximum depth: 61.0m
- Beamwidth: 20°x135°
- Power consumption: 21W-58W
- Frequencies: 530-1100kHz
- Target separation at 100ft: 22"
- Temperature range: 15°C-70°C
- LVS32 dimensions: 13.7×9.7×4.6cm
- GLS 10 dimensions: 24.5×14.9×6.5cm
- Includes: Transducer, black box, mounting hardware and cables

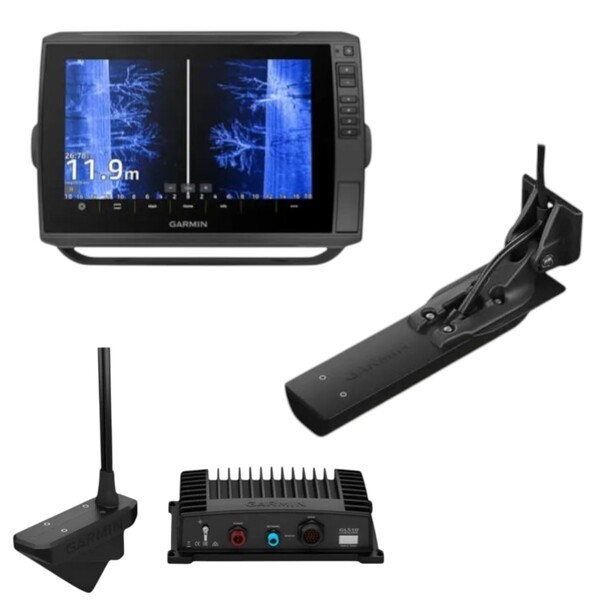

The Garmin Echomap Ultra 2 122sv LiveScope Combi Pack is the absolute flagship for the serious angler who refuses to compromise on screen size and detail. With the impressive 12.1-inch WXGA touchscreen, you have a massive canvas to view real-time images from the LiveScope PLUS LVS32 and the razor-sharp data from the GT56UHD transducer simultaneously. This powerful system offers a superior resolution of 1280×800 pixels, dual microSD slots for extensive Navionics charts, and an ultra-fast 10Hz GPS receiver for highly accurate navigation. Whether you are scanning structures with SideVü or watching fish react live to your lure, this robust and network-ready package provides ultimate control and overview to locate fish even on the largest waters.

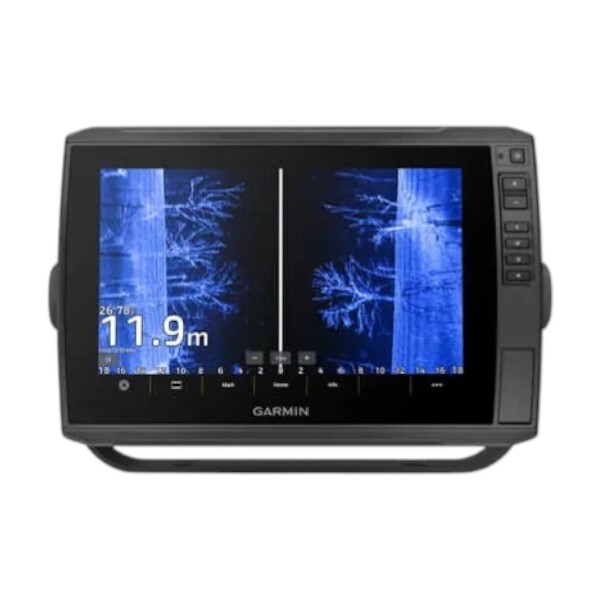

Garmin Echomap Ultra 2 122sv
The Garmin Echomap Ultra 2 122sv takes ease of use to the highest level with a generous 12.1-inch display, making split-screen views of sonar and navigation clearer than ever. The combination of touchscreen and Keyed Assist controls ensures lightning-fast menu navigation in all conditions, while the two Marine Network ports and NMEA 2000 connectivity allow seamless integration with your entire onboard system. With support for advanced features such as Quickdraw Contours and Fusion-Link, this is the most powerful all-in-one chartplotter for anglers who demand only the best visibility.

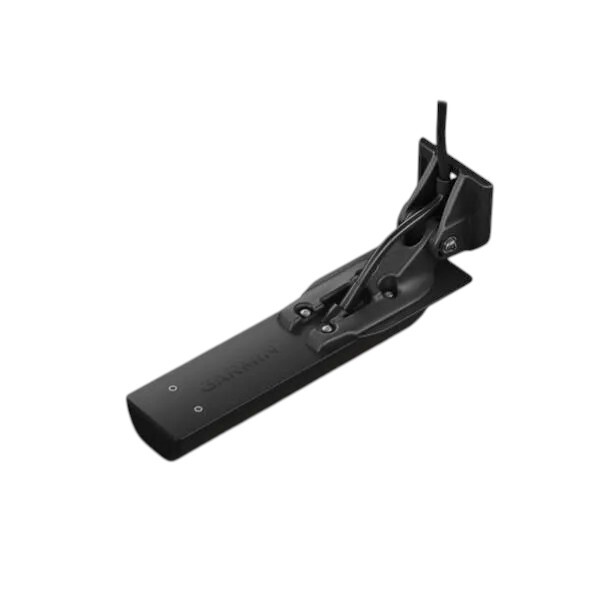

GT56UHD-TM Transducer
The GT56UHD-TM Transducer delivers the most detailed scan images currently available, with unprecedented sharpness in Ultra High-Definition. With an impressive ClearVü range of up to 122 meters and SideVü up to 152 meters on both sides of the boat, you can map bottom structures, brush piles, and fish locations with photorealistic precision. Thanks to three different scan frequencies and the built-in temperature sensor, you always have a clear and up-to-date view of what is happening beneath the water’s surface, regardless of depth.

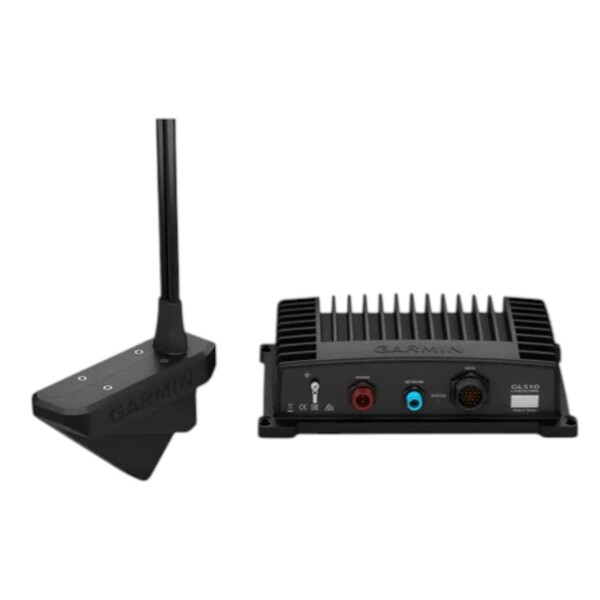

LiveScope PLUS System LVS32
With the LiveScope PLUS System LVS32, you add a live dimension to your fishing, allowing you to see fish swimming in real time and reacting to your bait presentation down to a depth of 61 meters. The included GLS 10 sonar black box processes signals at lightning speed, resulting in smooth images with excellent target separation, even at greater distances. This system is the ultimate tool for selecting active fish and instantly increasing your catch rate by seeing exactly when and how a fish strikes.
