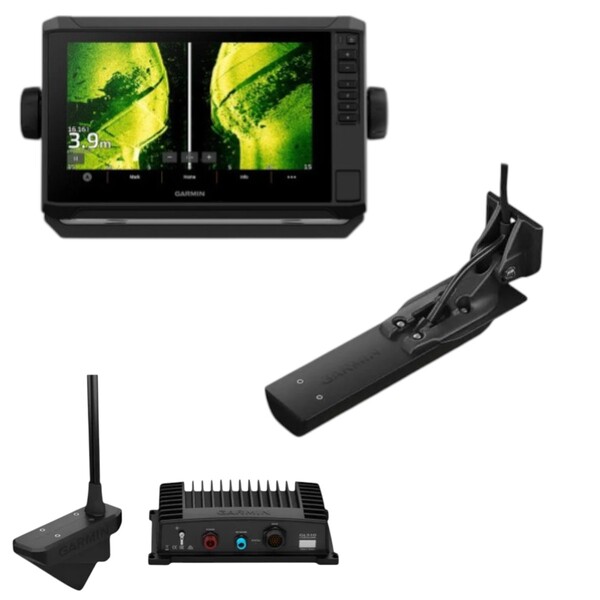

With this Garmin Echomap 92 Livescope Combi Pack, you get a complete view of the underwater environment! Perfect for ultra-precise targeting of the largest predators!
Garmin ECHOMAP UHD2 92sv Touchscreen
- With GPS
- Routes: 100
- Weight: 1.3kg
- Receiver: 10Hz
- Waterproof: IPX7
- Waypoints: 5,000
- Touchscreen: YES
- Screen type: WSVGA
- Track points: 50,000
- Output power: 500W
- Screen size: 9" (22.9cm)
- Input power: 9-18Vdc
- Marine Network ports: 1
- Transducer ports: 1 (12-pin)
- Wireless: WiFi, Bluetooth, ANT+
- Storage: 1 microSD (maximum 32GB)
- Dimensions: 26.4 × 16.6 × 8cm
- Screen resolution: 1024 × 600 pixels
- Maximum power at 10Vdc: 20.7W
- Mounting: Bracket or flush mount
- Operation: Touchscreen with Keyed Assist
- Satellite systems: GPS, Glonass, Galileo, Beidou
- Sonar: Traditional, ClearVü, SideVü and Panoptix
- NMEA 2000: Compatible for network connections
- Navigation: Supports BlueChart, LakeVü and Navionics
- Features: Quickdraw Contours, AIS, DSC and Sailing features
GT56UHD-TM Transducer
- Number of pins: 12
- Cable length: 7.62m
- Power: 350W-500W
- ClearVü range: 122m
- SideVü range: 152m
- Measurements: Depth and temperature
- Dimensions: 218.5×51.8×27.7mm
- Traditional range: 244m (fresh water)
- Deadrise angles: Supports 0° to 70°
- Beamwidth: CHIRP 24-16; ClearVü/SideVü 0.52×52
- Frequencies: CHIRP 150-240kHz; ClearVü/SideVü 455/800/1000kHz
Garmin LiveScope PLUS System LVS32
- Fuse: 7.5A
- Sonar type: Live
- Transmit power: 500W
- Number of pins: 21
- Cable length: 20ft
- Weight LVS32: 0.9kg
- Weight GLS 10: 2.0kg
- Waterproof rating: IPX7
- Input power: 10-32V
- Network port: 1 (small)
- Maximum depth: 61.0m
- Beamwidth: 20°x135°
- Power consumption: 21W-58W
- Frequencies: 530-1100kHz
- Target separation at 100ft: 22"
- Temperature range: 15°C-70°C
- LVS32 dimensions: 13.7×9.7×4.6cm
- GLS 10 dimensions: 24.5×14.9×6.5cm
- Includes: Transducer, black box, mounting hardware and cables
With the Garmin Echomap 92 Livescope Combi Pack, you bring home a complete high-end navigation and sonar system that displays the underwater world in real-time and razor-sharp detail. Thanks to the bright 9-inch touchscreen with Garmin Navionics support and the powerful LiveScope PLUS LVS32, you can literally see fish swimming around your lure, while the GT56UHD transducer delivers unprecedented depth and side detail through UHD ClearVü and SideVü. With 5,000 waypoints, ultra-fast 10Hz GPS, and wireless connectivity via WiFi and Bluetooth, you can effortlessly navigate to the best fishing spots and never miss a single detail beneath the boat. This robust, IPX7 waterproof package offers serious anglers maximum control and precision to fish more effectively and achieve better results on any type of water.

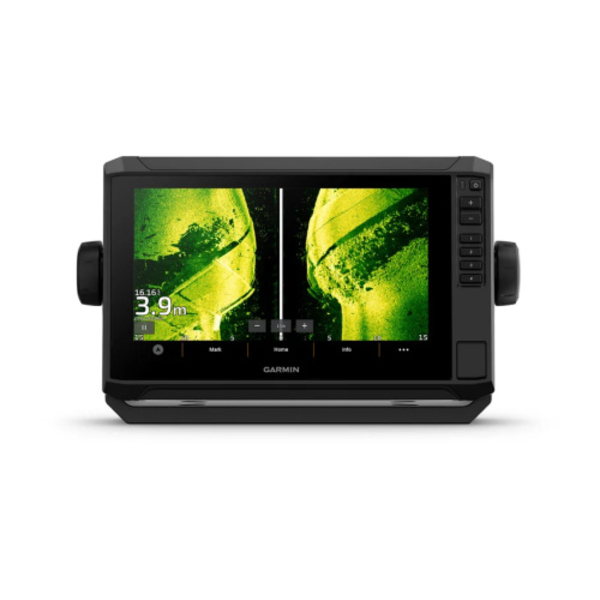

Garmin Echomap UHD2 92sv
The Garmin Echomap UHD2 92sv forms the beating heart of your boat setup with a razor-sharp 9-inch touchscreen that remains perfectly readable even in bright sunlight. Thanks to the ultra-fast 10Hz GPS receiver and support for Navionics charts, you can smoothly navigate through 50,000 track points and store up to 5,000 favorite waypoints. With built-in WiFi and Bluetooth, you can easily connect your smartphone or other devices, while the rugged IPX7 waterproof housing ensures top performance in all weather conditions.

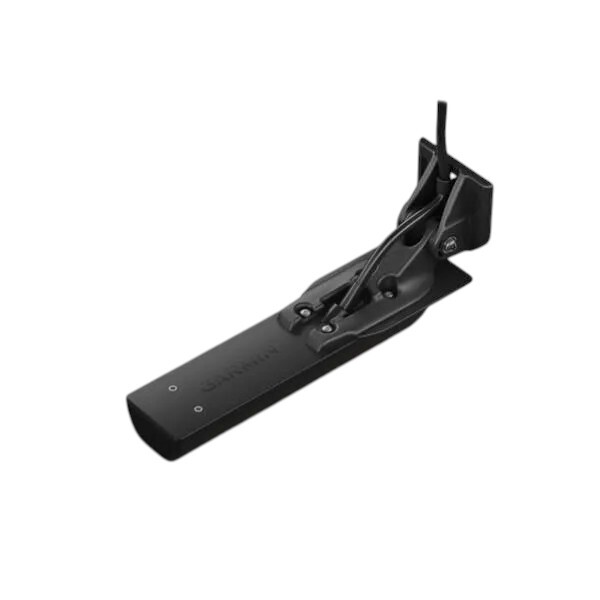

GT56UHD-TM Transducer
For anglers who don’t want to miss a single detail, the GT56UHD-TM Transducer delivers ultimate Ultra High-Definition resolution. With an impressive SideVü range of up to 152 meters and ClearVü images down to 122 meters deep, you can map structures and fish beside and beneath the boat in razor-sharp detail. The combination of traditional CHIRP sonar and three different scanning frequencies ensures unparalleled target separation, allowing you to see exactly what is happening on the bottom.

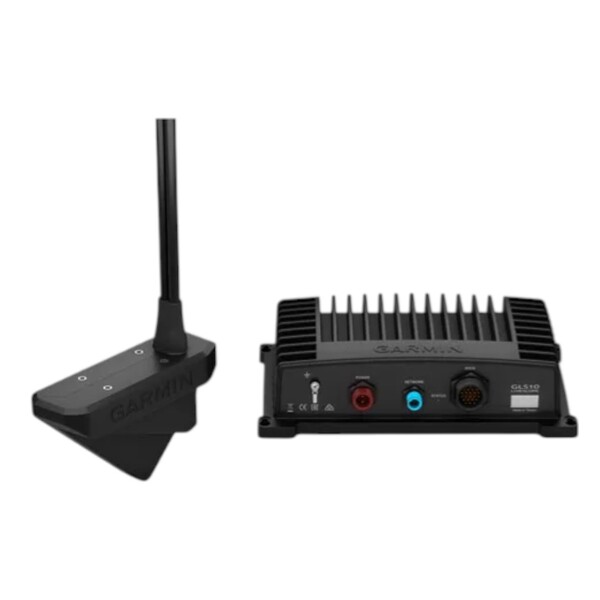

LiveScope PLUS System LVS32
The LiveScope PLUS System LVS32 takes your fishing to a revolutionary level by displaying real-time moving images of the underwater world. With a depth range of up to 61 meters, you can see fish respond instantly to your lure, allowing you to adjust your technique on the spot for maximum catch potential. This system comes complete with the GLS 10 sonar black box and all necessary mounting hardware, so you can immediately benefit from the most advanced live sonar technology currently available.
