HELIX 7 CHIRP SI GPS G4
- Series: HELIX
- Display Size: 7 Inch Diagonal
- Display Pixel Matrix: 1024H x 600V
- Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
- Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
- Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
- CHIRP – Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar Frequencies Supported: 50/83/200/455/800 kHz
- Depth-Sonar: 1,200ft / 365m (standard transducer) and 3,000ft / 915m (optional 50 kHz)
- CHIRP Imaging Frequencies Supported: 455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
- Depth-Down Imaging: 400ft / 107m (455 kHz) and 125ft / 38m (800 kHz)
- Range-Side Imaging (Side-To-Side): 800ft / 214m (455 kHz), 250ft / 76m (800 kHz)
- Interface: Keypad Control
- Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging
- Power Draw: 800 mA
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 4000 Watts
- Power Output RMS: 500 Watts
- Mount-Standard: Gimbal
- Mount-Standard Size: 10.54" W x 5.8" H x 3.68" D
- Mount-Optional Size: 10.54" W x 5.44" H x 1.13" D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Trackplotting: Included

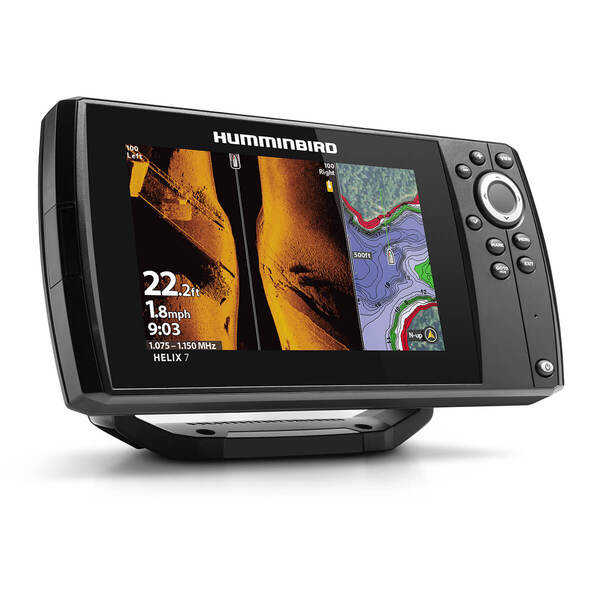

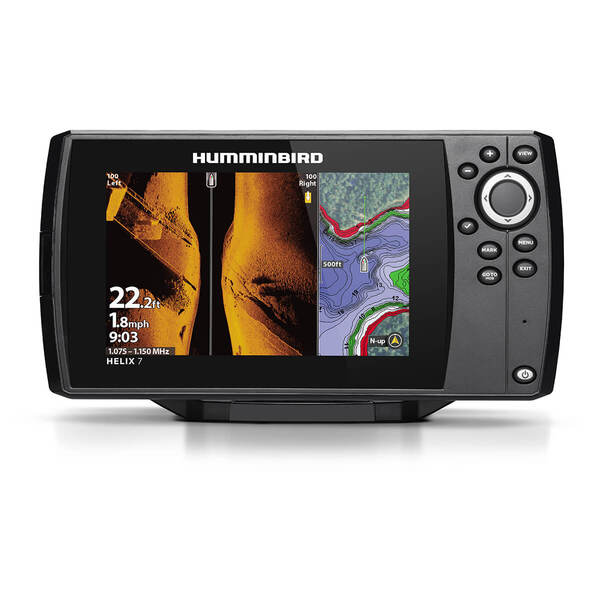

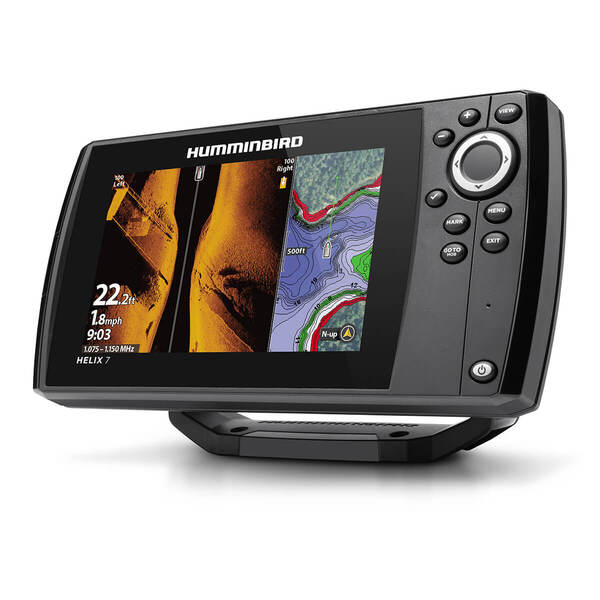

The HELIX 7 CHIRP SI GPS G4 fishfinder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and built-in Humminbird Basemap. With the upgraded high-definition 7-inch screen, you can see the world around your boat in detail!
Operating this fishfinder is very easy. You have instant access to pre-loaded views from the simple menu system, which you control with the soft-key buttons.
CHIRP stands for “Compressed High Intensity Radar Pulse.” By covering a wide range of frequencies, CHIRP produces more accurate, detailed results of fish, structure and bottom.
The Dual Spectrum CHIRP 2D sonar system gives you two ways to search through the Low-Q CHIRP transducer; Wide Mode for maximum coverage and Narrow Mode to focus on the smallest detail.
CHIRP Down Imaging: DI filters out noise and clutter for a super-clear image under the boat. CHIRP Digital Sonar processing from Down Imaging Sonar means you see lots of details to easily spot fish and you can observe structures under the boat with great accuracy.
CHIRP Side Imaging: SI filters out noise and clutter for a super-clear image on both sides of the boat. CHIRP Digital Sonar processing Side Imaging sonar means you can see fish and structures to the left and right of the boat.
The HELIX 7 CHIRP SI GPS G4 is equipped with an internal GPS and Humminbird base chart. This gives you an immediate view of the underwater terrain by default and allows you to fish and navigate with confidence. The system is compatible with Humminbird’s LakeMaster® and CoastMaster™ products, as well as Navionics® charts.
A top feature of this model is AutoChart Live. It lets you create real-time maps of your spots as you sail. By default, you have eight hours of built-in recording time, which you can expand with AutoChart Zero Line SD cards for virtually endless AutoChart Live map capacity.
This stunning fishfinder comes with screen, transom-mount transducer, power cable, mounting bracket and mounting hardware and has 1-Year Limited Warranty.
A true quality product, as you have come to expect from Humminbird, with GPS, Down and Side Imaging!
